Crankshaft Deflection Indicator

The DI-4 series of instruments are designed to be both accurate, fast and user friendly.

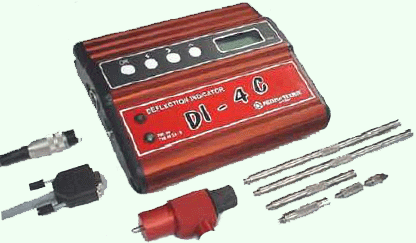

The complete instrument set is stored in a customized carrying case which includes Main instrument (with batteries), Transducer, Connecting cable, Extension bars, Measuring tip, Program Manual and User Manual.

DI-4 Technical Specification

Mesuring distance:	89 - 565 mm (can be further extended with optional bars). For measurements under 89 mm another transducer is available.
Measuring range:	+ 1,999 mm to - 1,999 mm
Resolution:	0,001 mm
Zero balance range:	+ 0,500 to - 0,500 mm
Zero drift:	0,001 mm/ 5 minutes
Instrument operating range:	0-55'C/32-130'F
Transducer operating range:	0-80'C/32-175'
Batteries:	3x1,5V standard R14 alkaline
Battery life:	150 hours
Extension bars (Invar alloy):	10, 20, 40, 80 mm, one of each 160 mm two pieces
